Rotel RB-1582 MkII Stereo Power Amplifier Silver

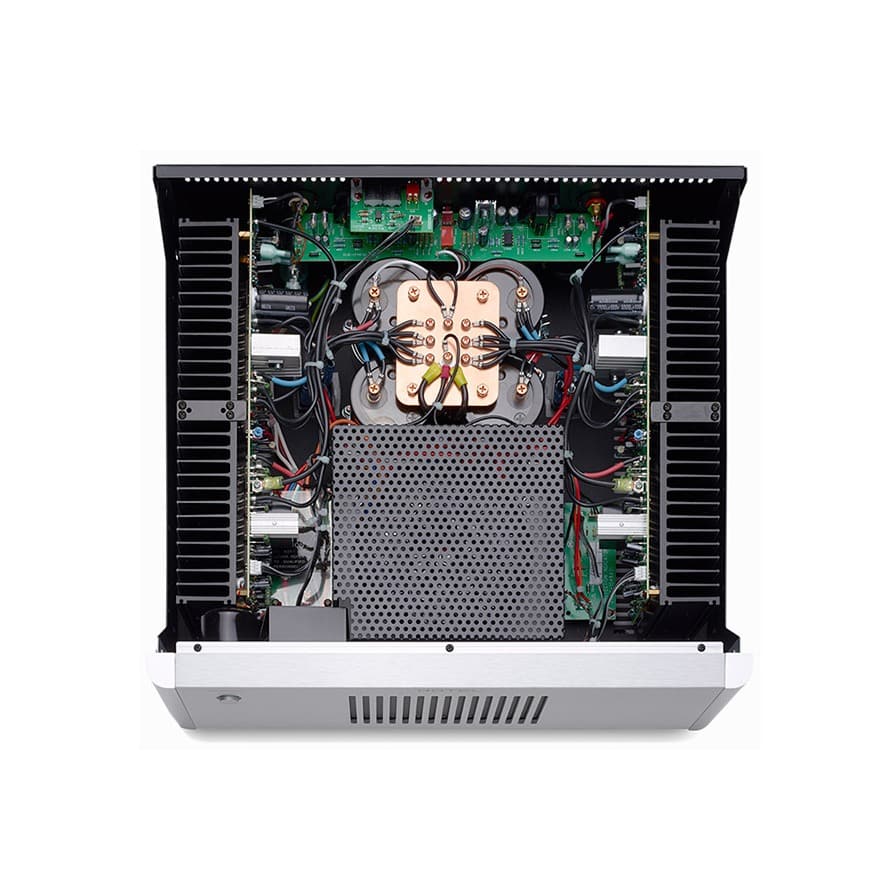

Description Rotel RB-1582 MkII Stereo Power Amplifier Silver 200W per channel and monoblock layout with star grounding The Rotel RB-1582 MkII is the reference stereo power amplifier in Rotel's Music Systems range, delivering 200W per channel into 8 ohms and 323W into 4 ohms in Class A/B. It is the natural companion to the RC-1590 MkII preamplifier, and is the same power section that Rotel brought to the RA-1592 integrated amplifier. Internal construction adopts a monoblock layout for both channels (after the toroidal transformer), with all ground connections terminated in star configuration on a dedicated copper plate to ensure the lowest possible noise floor. The output stage is a fully discrete design with 10 high-current bipolar transistors per channel, selected to ensure reproduction accuracy with any loudspeaker, including the most challenging low-impedance configurations. Toroidal transformer and 60.000µF slit-foil capacitors At the heart of the power supply is an extraordinarily large toroidal transformer, paired with a total of 60.000µF of capacitance stored in British-made slit-foil capacitors. These capacitors, thanks to their thin-film geometry, charge and discharge extremely rapidly, ensuring a stable and immediate current supply even during the most intense orchestral crescendos or repeated kick drum strikes. Idle power consumption is 60W, indicating a power supply that's constantly ready to respond to the most sudden dynamic demands. Maximum power consumption at full power is 550W, with a BTU rating of 1104 BTU/h. Balanced XLR and unbalanced RCA inputs The rear panel offers a choice of balanced XLR or unbalanced RCA inputs for each channel. The XLR input has a 100kΩ impedance and a sensitivity of 3,0V, ideal for direct connection to the RC-1590 MkII preamplifier using balanced cables to eliminate common-mode noise. The RCA input has a 12kΩ impedance and a sensitivity of 1,9V. The rear panel features four pairs of color-coded speaker binding posts, two per channel, that accept bare wire, cable lugs, and dual banana plugs (excluding European versions). A 12V trigger allows for remote on/off control in coordination with other system components. Performance and Balanced Design Concept The signal-to-noise ratio is 116 dB (IHF A-weighting), total harmonic distortion is less than 0,03% across the entire audio frequency range, and the damping factor reaches 800 into 8 ohms—an exceptional value that ensures excellent control over the speakers even in the most dynamic situations. The frequency response extends from 10Hz to 100kHz with a deviation of ±0,5 dB. Rack mounting ears (3U) are included, making the RB-1582 MkII also suitable for installation in dedicated racks for high-end hi-fi and home theater systems. Why choose the Rotel RB-1582 MkII? Stereo power amplifier 200W/channel (8Ω) / 323W/channel (4Ω), Class A/B Monoblock layout for channel with star grounding on copper plate 10 high-current bipolar transistors per channel Large toroidal transformer 60.000µF British slit-foil capacitors Balanced XLR and unbalanced RCA inputs per channel S/N ratio 116 dB, THD < 0,03% Damping factor 800 into 8 ohms Rack ears included (3U) 12V trigger for integration into multi-component systems Balanced Design Concept Rotel What's in the box 1 x Rotel RB-1582 MkII Power Amplifier (Silver) 1 x Rack Mount Ears 1 x Power cable 1 x User Manual Specifications Type: Stereo power amplifier, Class A/B Output Power: 200W × 2 (8Ω, 20Hz–20kHz, <0,03% THD) Output power (4Ω): 323W×2 Total harmonic distortion (THD): < 0,03% (20Hz–20kHz) Intermodulation distortion: <0,03% Frequency response: 10Hz–100kHz (±0,5dB) S/N ratio: 116 dB (IHF A) Damping factor: 800 (8Ω) Minimum speaker impedance: 4Ω Inputs: Balanced XLR ×1 per channel, Unbalanced RCA ×1 per channel RCA input sensitivity: 1,9V / 12kΩ XLR input sensitivity: 3,0V / 100kΩ I earn: RCA 26,5 dB / XLR 22,5 dB Capacitor capacity: 60.000µF slit-foil Output transistor: 10 high current bipolars per channel Consumption: 550W (maximum), 60W (idle), 0,5W (standby) Dimensions (W×H×D): 431 × 144 × 407 mm Front panel height: 3U / 132,6mm Net weight: 17,6 kg
