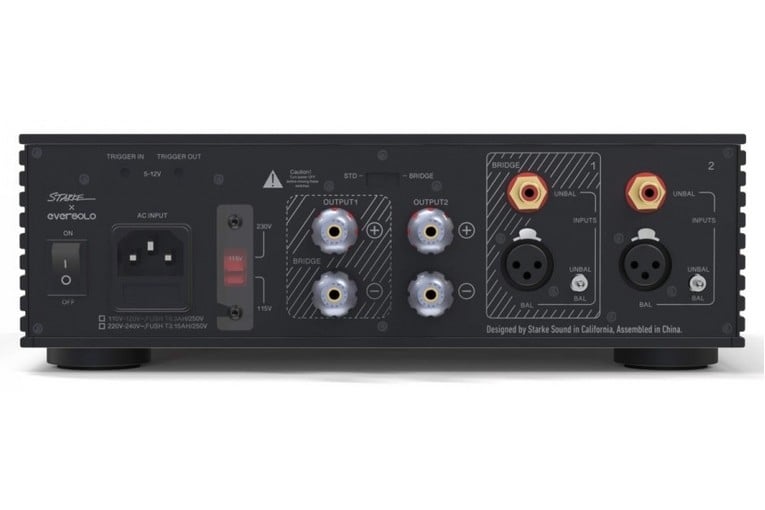

EverSolo AMP-F2 Power Amplifier

Description EverSolo AMP-F2 Class D Power Amplifier EverSolo AMP-F2 class D power amplifier developed in collaboration with the Starke Sound team, integrating the NS600 module to offer exceptional sonic performance. This amplifier stands out for its high power, extraordinary dynamics and sound precision, making it ideal for demanding audiophiles. Power and Versatility The AMP-F2 delivers significant power thanks to Starke Sound's NS600 amplifier module, providing up to 2x250W RMS at 4 Ohms with a total harmonic distortion (THD) of 1%. When configured in bridge mode (BTL), the power rises to 450W RMS at 2 Ohms, making it capable of supporting very low load impedances and demanding speakers. This versatility allows the AMP-F2 to operate in both stereo and mono modes, accommodating different audio setups. Incredible Sound Precision The innovative NS600 module uses PurePath Ultra-HD technology and an advanced error-correcting feedback design. This technology reduces distortion across the entire frequency range, ensuring extremely accurate and detailed sound reproduction. This level of sonic precision is ideal for those who want a flawless audio experience. Powerful and Clean Power The AMP-F2 is equipped with a high-performance 600W power supply, which ensures stable and clean output. With low levels of ripple and EMI, this power supply provides reliable, consistent power, essential for maintaining audio signal integrity. Furthermore, energy efficiency is optimized, reducing environmental impact and ensuring low power consumption in both standby and active modes. Robust and Elegant Design The design of the AMP-F2 features a sturdy aluminum chassis, combining aesthetics and functionality. This material not only gives a modern and refined look, but also offers superior protection against impacts and corrosion. The heat dissipation ability of aluminum helps maintain an optimal operating temperature, preserving the quality of the internal components over time. Effective shielding The aluminum chassis also acts as a shield against external electromagnetic interference, protecting the amplifier's sensitive circuitry. This shielding is crucial to maintaining signal quality and overall performance in environments full of electronic equipment. Trigger functionality The AMP-F2 features 5-12V trigger inputs and outputs in a 3,5mm jack format, allowing you to create an automatic on/off chain between compatible devices. This feature simplifies the user experience, allowing you to control the entire audio system with a single command. Technical Specifications Amplifier type: power amplifier Amplification type: Class D Stereo Mode Power: 2×250W RMS @ 4Ω (1% THD) 2×145W at 8Ω (1% THD) Power Bridge Mode (BTL): 1×280W RMS @ 4Ω (1% THD), 1×450W RMS into 2Ω (1% THD) Inputs: Unbalanced RCA, Balanced XLR Outputs Beryllium-copper speaker terminals Gain: 21,5 dB Frequency Response: 10Hz – 20kHz (-1dB) Maximum current output per channel: 16.5A in stereo mode, 33A in bridge mode (BTL) THD: 0,003% at 10W, 1kHz SNR: >110dBA @ 4Ω, 260W Input Impedance: RCA 11kΩ, XLR: 22kΩ Input Sensitivity: 2.7V Output Impedance: 0.136Ω (5 Hz to 100 kHz) Minimum load impedance: 0,8Ω Damping factor: 100 Balanced circuit Trigger 5-12V Input and Output Power supply 115VAC – 230VAC (switchable) Consumption: standby 0,5 W, medium 14 W, maximum 900 W Size: x 270 228 80 mm x Frame: Aluminium Weight: 3,65 kg
