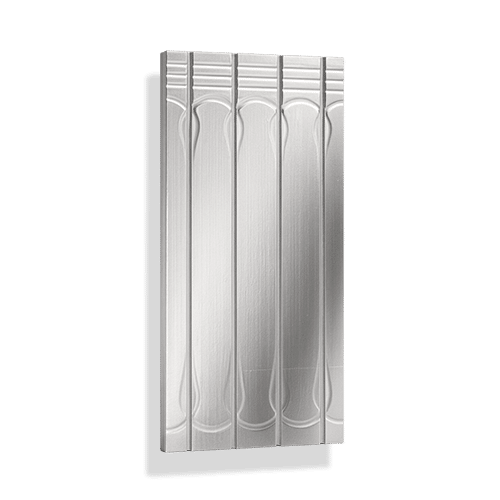

Komfort 20mm XPS Highway Transition Board 1200 x 600mm 400Kpa

Introducing the Komfort GHT 20mm XPS Highway Transition Overlay Panel — the perfect match for XPS overlay systems, providing excellent insulation and supporting the flow and return pipes back to the manifold. TECHNICAL DATA: Total Dimensions:  L1200 x W600 x H20mm Compression Strength: XPS 400kPa Pipe Centres: 37.5mm Suitable Pipe Size:  16mm Thermal conductivity: 0.034W/mK USP: Omega grooves for easy installation Suitable Floor Coverings: If primed with a suitable primer, tiles can be laid directly, or a 10mm levelling compound can be used for other floor coverings. How many boards do you need? Calculation Example: 20m2 divide by 0.72 = 28 Panels. Key Features: Material: High-density extruded polystyrene with reinforced cement coating. Strength: Excellent impact and compressive strength. Cutting: Can be easily cut using conventional tools.
